HIKVISION DS-3E0510P-E/M Gigabit POE Switch 8 Port Power Over Ethernet CCTV Power Security Camera Repair SGCCTV CHOICECYCLE

HIKVISION DS-3E0510P-E/M | 8-Port Gigabit PoE Switch | Power Over Ethernet CCTV Camera Switch | SFP Fibre Uplink | CCTV Repair | SGCCTV Choicecycle Singapore

The HIKVISION DS-3E0510P-E/M is a compact professional 8-Port Gigabit Unmanaged PoE Switch designed for CCTV security cameras, IP surveillance systems, NVRs, access control, IP intercom and other Power over Ethernet network applications.

Featuring 8 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP fibre optical port, the DS-3E0510P-E/M provides a simple and reliable way to power and connect multiple IP security cameras through standard Ethernet cabling.

With IEEE 802.3af/at PoE, up to 30W per PoE port, a 58W total PoE budget, 20Gbps switching capacity, Gigabit network transmission and 6kV surge protection, this switch is ideal for small and medium CCTV security installations.

Key Specifications

• Brand: HIKVISION
• Model: DS-3E0510P-E/M
• Type: Gigabit Unmanaged PoE Switch
• 8 × Gigabit PoE RJ45 Ports
• 1 × Gigabit RJ45 Uplink Port
• 1 × Gigabit SFP Fibre Optical Port
• Total Network Ports: 10
• PoE Ports: Ports 1–8
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Power Per Port: 30W
• Total PoE Budget: 58W
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K
• Internal Cache: 1.5 Mbits
• Surge Protection: 6kV
• Power Supply: 48V DC, 1.35A
• Fanless Design
• Metal Housing
• Desktop or Wall-Mounted Installation

8-Port Gigabit PoE for CCTV Cameras

The DS-3E0510P-E/M provides 8 Gigabit PoE ports, allowing compatible IP cameras to receive both electrical power and network data through one Ethernet cable.

Instead of installing:

Power Cable + Power Adapter + Network Cable

a PoE CCTV installation can use:

One Cat6 Cable = POWER + DATA

This simplifies installation and makes the CCTV system easier to maintain.

It is suitable for:

• HIKVISION IP Cameras
• AcuSense Cameras
• ColorVu Cameras
• Smart Hybrid Light Cameras
• Dome Cameras
• Bullet Cameras
• AI CCTV Cameras
• Door Access Devices
• IP Intercom
• Compatible Wireless Access Points

Gigabit CCTV Network Performance

All eight PoE camera ports operate at Gigabit Ethernet speed, making the switch suitable for modern high-resolution CCTV systems.

Gigabit connectivity is particularly useful when deploying:

• 4MP Cameras
• 6MP Cameras
• 8MP / 4K Cameras
• AI Cameras
• High-Bitrate Cameras
• Multi-Stream CCTV
• Audio + Video Cameras

The switch provides 20Gbps switching capacity and a 14.88 Mpps forwarding rate, enabling wire-speed forwarding for network traffic.

58W Total PoE Budget

The original DS-3E0510P-E/M provides a total 58W PoE power budget, with individual PoE ports supporting up to 30W.

This means that although the switch provides eight PoE ports, technicians must calculate the combined maximum power requirement of all connected cameras.

For example:

8 cameras × 5W = 40W — Suitable

But:

8 cameras × 10W = 80W — Exceeds the 58W PoE budget

Always calculate the total PoE requirement before selecting a switch, especially when using motorized cameras, IR cameras, PTZ cameras or other higher-power devices.

Gigabit SFP Fibre Optical Port

A major advantage of the DS-3E0510P-E/M is its dedicated Gigabit SFP fibre optical port.

With a compatible SFP transceiver, the switch can be connected to a fibre optic backbone.

A typical installation can be:

8 CCTV Cameras → DS-3E0510P-E/M → SFP Fibre → Server Room → NVR

This is useful for:

• Building-to-Building CCTV
• Warehouses
• Factories
• Remote Guardhouses
• Commercial Buildings
• Industrial Sites
• Long-Distance Network Backbone

Actual fibre distance depends on the selected SFP transceiver and fibre type.

1 × Dedicated Gigabit RJ45 Uplink

In addition to the eight PoE ports, the switch provides a dedicated Gigabit RJ45 uplink.

This can be connected to:

• HIKVISION NVR
• Router
• Core Switch
• Network Switch
• Server
• CCTV Workstation
• Internet Network

This gives installers flexibility to use either copper Ethernet or fibre for the network uplink.

6kV Surge Protection

The DS-3E0510P-E/M provides 6kV surge protection for the PoE ports.

This adds protection against transient electrical surges that can damage network equipment.

For outdoor CCTV systems, proper surge protection, grounding and professional cabling practices should still be implemented according to the installation environment.

Fanless Design for Reliable Operation

The DS-3E0510P-E/M uses a fanless design.

Benefits include:

• Quiet Operation
• Fewer Moving Parts
• Reduced Dust Intake
• Lower Maintenance
• Suitable for Offices
• Suitable for Small Server Cabinets
• Reliable Continuous Operation

Its metal housing also provides better physical protection for professional installations.

Plug-and-Play Unmanaged Switch

The DS-3E0510P-E/M is an unmanaged switch.

This makes installation simple:

Connect Power → Connect CCTV Cameras → Connect NVR/Network → Start Operation

No complicated switch configuration is required for a basic CCTV network.

For installations requiring advanced features such as VLAN configuration, PoE Watchdog, STP/RSTP or remote switch management, consider a Hikvision Smart Managed PoE Switch instead.

Ideal Applications

• Home CCTV
• Office CCTV
• Retail Shops
• Warehouses
• Factories
• Schools
• Clinics
• Restaurants
• Condominiums
• Commercial Buildings
• Car Parks
• Guardhouses
• Server Rooms
• Small Business Networks
• Security System Installations

CCTV PoE Switch Troubleshooting

A CCTV camera going offline does not always mean that the camera itself is faulty.

The problem can originate from:

• PoE Switch
• Power Adapter
• Cat5e / Cat6 Cable
• RJ45 Connector
• Network Configuration
• NVR
• SFP Module
• Fibre Cable
• IP Address Conflict
• PoE Power Overload

A proper troubleshooting process should check:

Camera → Cat6 Cable → RJ45 → PoE Switch → Network Uplink → NVR

Common PoE Switch Problems

SGCCTV can troubleshoot issues including:

• CCTV Camera No Power
• Camera Offline
• PoE Port Failure
• Switch No Power
• Intermittent Video
• NVR Cannot Detect Camera
• Fibre Link Failure
• SFP Module Failure
• Network Packet Loss
• Damaged RJ45 Port
• Faulty Power Adapter
• Insufficient PoE Power
• Network Cable Failure
• CCTV Recording Problems
• Remote Viewing Failure

CCTV Security Camera Repair & Replacement Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides professional services including:

• HIKVISION PoE Switch Supply
• PoE Switch Replacement
• CCTV Camera Installation
• CCTV Troubleshooting
• Network Troubleshooting
• Cat6 Cable Testing
• RJ45 Termination
• Fibre Optic Installation
• SFP Module Installation
• NVR Installation
• CCTV Repair & Replacement
• Server Rack Installation
• Preventive Maintenance
• Technical Support

Why Choose SGCCTV Choicecycle?

SGCCTV provides integrated:

CCTV + PoE SWITCH + NETWORK + FIBRE + SERVER RACK + DOOR ACCESS

solutions.

When a CCTV camera fails, the cause may be the camera, cable, PoE power, network switch, fibre link, NVR or network configuration.

By troubleshooting the complete security infrastructure, the actual fault can be identified before unnecessary equipment is replaced.

Website: https://sgcctv.biz

Email: enquiry@choicecycle.com.sg

WhatsApp: +65 98534404

Frequently Asked Questions

1. What is the HIKVISION DS-3E0510P-E/M?

The DS-3E0510P-E/M is an 8-port Gigabit unmanaged PoE switch designed for CCTV cameras and other compatible PoE network devices.

2. How many PoE ports does it have?

It provides 8 × Gigabit PoE RJ45 ports.

3. How many uplink ports are available?

It has 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP fibre optical port.

4. What is the total PoE power budget?

The original DS-3E0510P-E/M has a total 58W PoE power budget.

5. How much power can each PoE port provide?

Each PoE port can provide up to 30W, subject to the overall 58W PoE budget.

6. Does it support PoE+?

Yes. The switch supports both IEEE 802.3af and IEEE 802.3at PoE standards.

7. Is DS-3E0510P-E/M a managed switch?

No. It is an unmanaged PoE switch, designed for straightforward plug-and-play installation.

8. Can the switch connect to fibre optic cable?

Yes. It provides one Gigabit SFP optical port. A compatible SFP transceiver and fibre cable are required.

9. Can it be used for HIKVISION CCTV cameras?

Yes. It is designed for video surveillance network applications and can power compatible HIKVISION IP cameras, subject to the camera’s PoE standard and total power requirements.

10. Does SGCCTV provide PoE switch and CCTV repair?

Yes. SGCCTV Choicecycle Singapore provides CCTV troubleshooting, PoE switch replacement, Cat6 cabling, fibre optic installation, SFP troubleshooting, NVR repair, camera replacement and preventive maintenance.

15 Facebook Hashtags

#Hikvision #DS3E0510PEM #HikvisionSwitch #PoESwitch #8PortPoE #GigabitPoE #PowerOverEthernet #CCTVSwitch #CCTVPower #IPCamera #CCTVRepair #SecurityCamera #CCTVSingapore #SGCCTV #Choicecycle

Important model revision: Hikvision also has DS-3E0510P-E/M(B). The newer (B) version is still 8 Gigabit PoE + 1 Gigabit RJ45 + 1 Gigabit SFP, but its official datasheet specifies a higher 80W PoE budget. So for quotations and listings, check whether your stock label says DS-3E0510P-E/M or DS-3E0510P-E/M(B) before advertising the PoE wattage. (Hikvision)

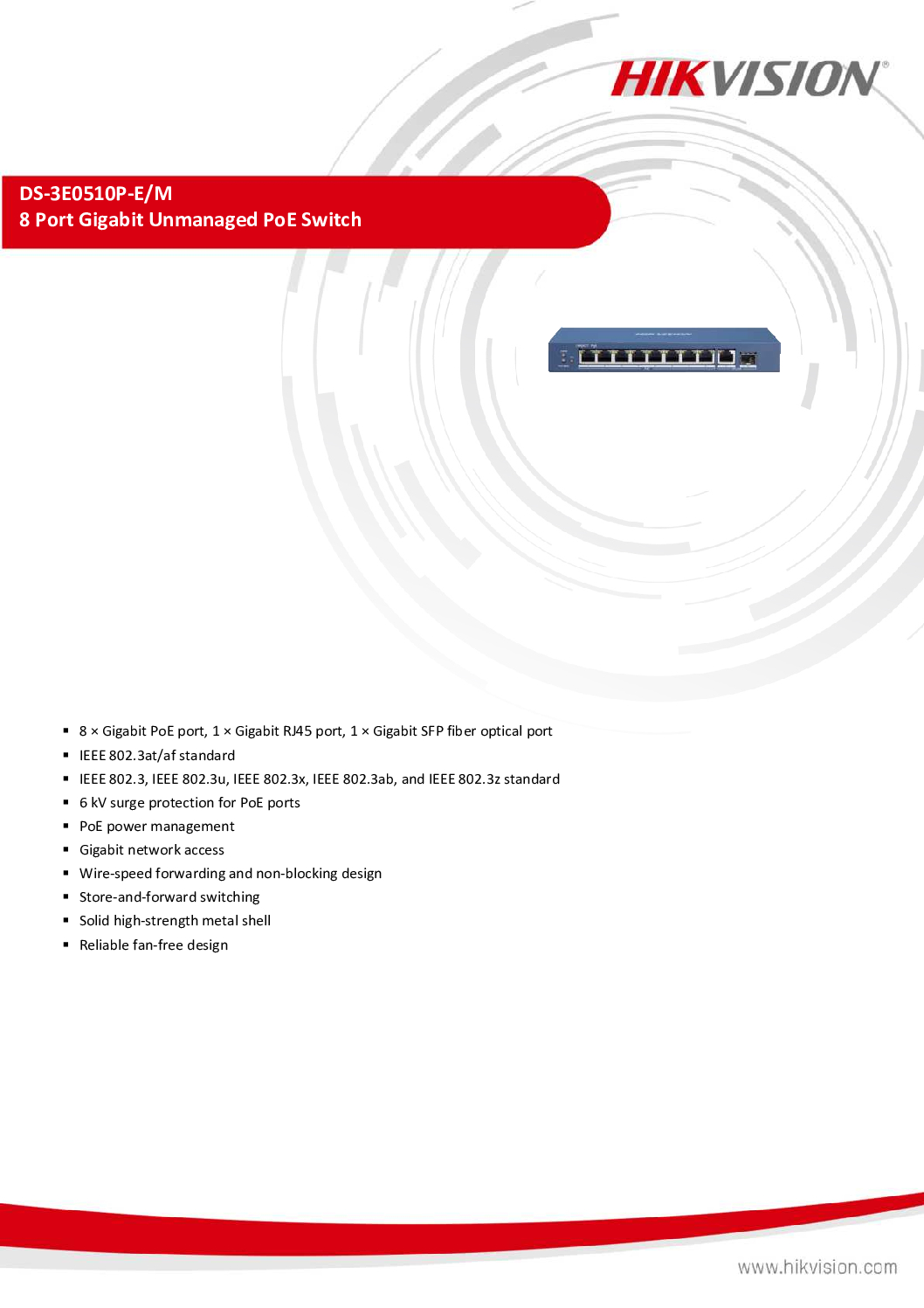

Hikvision official DS-3E0510P-E/M datasheet
