HIKVISION DS-D5065UC-C 65-inch 4K Monitor 24/7 Operation O-STD Security Command Center CCTV Monitor Repair SGCCTV CHOICECYCLE

HIKVISION DS-D5065UC-C | 65-Inch 4K UHD 24/7 CCTV Monitor | Security Command Center Display | Surveillance Monitor Repair & Replacement | SGCCTV Choicecycle Singapore

The HIKVISION DS-D5065UC-C is a professional 65-inch 4K UHD CCTV surveillance monitor engineered specifically for security monitoring, CCTV control rooms, command centres, guardhouses, security operation centres and other applications requiring reliable 24 hours × 7 days continuous operation.

Unlike an ordinary consumer television intended mainly for entertainment, the DS-D5065UC-C is designed for video security, high reliability and stability.

With a native 3840 × 2160 4K UHD resolution at 60Hz, 65-inch LED-backlit display, 350 cd/m² brightness, wide 178° horizontal and vertical viewing angles, narrow bezel and multiple video inputs, the DS-D5065UC-C provides a large professional display for viewing multiple CCTV cameras simultaneously.

Key Specifications

• Brand: HIKVISION
• Model: DS-D5065UC-C
• Type: Professional CCTV / Security Monitor
• Screen Size: 65 inches
• Resolution: 3840 × 2160 UHD 4K
• Refresh Rate: 60Hz
• Backlight: LED
• Brightness: 350 cd/m²
• Viewing Angle: 178° Horizontal / 178° Vertical
• Contrast Ratio: 1200:1
• Response Time: 8ms
• Color Depth: 8-bit
• Color Gamut: 72% NTSC
• Reliability: 7 × 24 Hours
• HDMI 2.0: 1 Port
• HDMI 1.4: 1 Port
• VGA: 1 Port
• Audio Input: 1 Port
• USB: 1 Port
• Built-In Speakers: 2 × 7W
• Power Supply: 100–240VAC, 50/60Hz
• Maximum Power Consumption: ≤190W
• Standby Consumption: ≤0.5W
• VESA Mount: 300 × 300mm
• Net Weight: Approximately 18.6kg without stand

Designed for CCTV Security – 24/7 Operation

One of the strongest advantages of the HIKVISION DS-D5065UC-C is its 7 × 24-hour reliability rating.

Security monitoring does not stop after office hours.

CCTV command centres may require live camera displays continuously:

24 Hours a Day × 7 Days a Week × 365 Days a Year

The DS-D5065UC-C is designed specifically for surveillance environments requiring high reliability and stability.

This makes it an excellent choice for:

• CCTV Control Rooms
• Security Command Centres
• Security Operations Centres
• Guardhouses
• Building Management Rooms
• Factory Security Rooms
• Data Centres
• Transport Facilities
• Industrial Facilities
• Enterprise Security Systems

65-Inch 4K UHD CCTV Display

The DS-D5065UC-C provides a native resolution of:

3840 × 2160 @ 60Hz

4K resolution provides four times the pixel count of Full HD 1080p.

For CCTV applications, the additional resolution is particularly valuable when displaying multiple high-resolution camera channels on one large screen.

For example, operators may display:

• 4-Camera View
• 9-Camera View
• 16-Camera View
• 25-Camera View
• 32-Camera View
• Alarm Pop-Up Windows
• Camera + Map Layouts

Actual multi-camera layouts depend on the connected NVR, decoder or video management system.

Wide 178° Viewing Angle

A security control room may have several operators viewing the same display from different positions.

The DS-D5065UC-C provides:

178° Horizontal Viewing Angle

178° Vertical Viewing Angle

This wide viewing angle helps maintain visibility when the monitor is viewed from the side rather than directly from the centre.

HDMI 2.0 for 4K CCTV

The monitor provides:

1 × HDMI 2.0

1 × HDMI 1.4

1 × VGA

This allows connection to compatible:

• HIKVISION NVR
• Enterprise NVR
• DVR
• CCTV Decoder
• Security Workstation
• PC
• Video Management Server
• Command Centre System

For full 4K display performance, the video source, output resolution and HDMI connection must also support the required 4K format.

Built-In Speakers

The DS-D5065UC-C includes 2 × 7W built-in speakers.

This is useful for CCTV applications involving compatible cameras with:

• Built-In Microphones
• Two-Way Audio
• Security Intercom
• Alarm Audio
• Recorded Audio Evidence

Audio availability depends on the complete camera, recorder and monitor configuration.

Security Command Center Application

A professional CCTV command centre can be configured as:

IP Cameras → PoE Switch → Network → NVR / CCTV Server → HDMI → HIKVISION DS-D5065UC-C

For larger enterprise systems:

Multiple CCTV Cameras → Fibre Network → Enterprise NVR / VMS Server → Decoder / Workstation → 65-Inch 4K Security Display

This provides operators with a centralised view of security cameras and alarms.

Ideal Applications

The HIKVISION DS-D5065UC-C is suitable for:

• CCTV Command Centres
• Security Control Rooms
• Guardhouses
• Commercial Buildings
• Factories
• Warehouses
• Hospitals
• Schools
• Universities
• Hotels
• Shopping Centres
• Car Parks
• Data Centres
• Transportation Facilities
• Government Facilities
• Industrial Plants
• Enterprise Security Operations

CCTV Monitor Repair & Replacement Singapore

A CCTV system may continue recording normally even when its monitor fails.

Common CCTV monitor problems include:

• Monitor No Power
• Black Screen
• No HDMI Signal
• Screen Flickering
• Display Lines
• Image Distortion
• HDMI Port Failure
• VGA Input Failure
• Backlight Failure
• Intermittent Display
• Monitor Automatically Shuts Down
• Incorrect Resolution
• NVR Display Not Showing
• Damaged Screen
• Ageing CCTV Monitor

Before replacing a monitor, technicians should determine whether the fault originates from:

Monitor → HDMI Cable → NVR HDMI Output → NVR → Power Supply

This avoids unnecessarily replacing equipment when the actual fault is elsewhere.

Replace Consumer TV with Professional CCTV Monitor

For continuous surveillance environments, a professional security monitor should be considered instead of selecting a display based only on screen size or consumer TV features.

The DS-D5065UC-C is specifically designed around:

• Video Security
• 24/7 Operation
• High Reliability
• Stable CCTV Display
• Wide Viewing Angles
• Multiple Video Inputs
• Large Multi-Camera Monitoring

This makes it particularly appropriate for permanent security monitoring installations.

SGCCTV Security Command Centre Solutions

SGCCTV – Choicecycle CCTV Pte Ltd provides integrated CCTV control-room and command-centre solutions including:

• HIKVISION CCTV Monitors
• 4K CCTV Displays
• CCTV Monitor Replacement
• Enterprise NVR
• RAID NVR
• CCTV Servers
• Video Management Systems
• AI CCTV Cameras
• PoE Network Switches
• Fibre Optic Networks
• Server Rack Installation
• UPS Backup Power
• CCTV Workstations
• CCTV Troubleshooting
• Preventive Maintenance
• Security System Repair & Replacement

Contact SGCCTV Choicecycle Singapore

Website: https://sgcctv.biz

Email: enquiry@choicecycle.com.sg

WhatsApp: +65 98534404

Frequently Asked Questions

1. What is the HIKVISION DS-D5065UC-C?

The DS-D5065UC-C is a professional 65-inch 4K surveillance monitor designed specifically for video security applications requiring high reliability and continuous operation.

2. Is DS-D5065UC-C a 4K monitor?

Yes. Its native resolution is 3840 × 2160 at 60Hz, providing 4K UHD display capability.

3. Can the DS-D5065UC-C operate 24/7?

Yes. Hikvision officially specifies its reliability as 7 × 24 hours, making it suitable for continuous CCTV monitoring.

4. Is it suitable for a CCTV command centre?

Yes. Its 65-inch screen, 4K resolution, wide viewing angle and 24/7 rating make it particularly suitable for CCTV command centres, control rooms and security operation centres.

5. What HDMI connections does it have?

The monitor provides 1 × HDMI 2.0 and 1 × HDMI 1.4, together with a VGA input.

6. Does the monitor have built-in speakers?

Yes. The DS-D5065UC-C includes two built-in 7W speakers.

7. What is the viewing angle?

It provides a wide 178° horizontal and 178° vertical viewing angle, useful when several security operators are viewing the same display.

8. Can it display a HIKVISION NVR?

Yes. A compatible HIKVISION NVR can be connected through HDMI. The available display resolution and multi-camera layout depend on the NVR and system configuration.

9. Can the monitor be wall mounted?

Yes. It supports a 300 × 300mm VESA mounting pattern. The wall structure and mounting bracket should be suitable for the monitor’s size and weight.

10. Does SGCCTV provide CCTV monitor repair and replacement?

Yes. SGCCTV Choicecycle Singapore provides CCTV monitor troubleshooting and replacement, NVR diagnostics, HDMI troubleshooting, command-centre upgrades, CCTV system installation, preventive maintenance and technical support.

#Hikvision #DSD5065UCC #65InchMonitor #4KMonitor #CCTVMonitor #24x7Monitor #SecurityMonitor #CommandCenter #ControlRoom #CCTVDisplay #CCTVRepair #SecuritySystem #CCTVSingapore #SGCCTV #Choicecycle

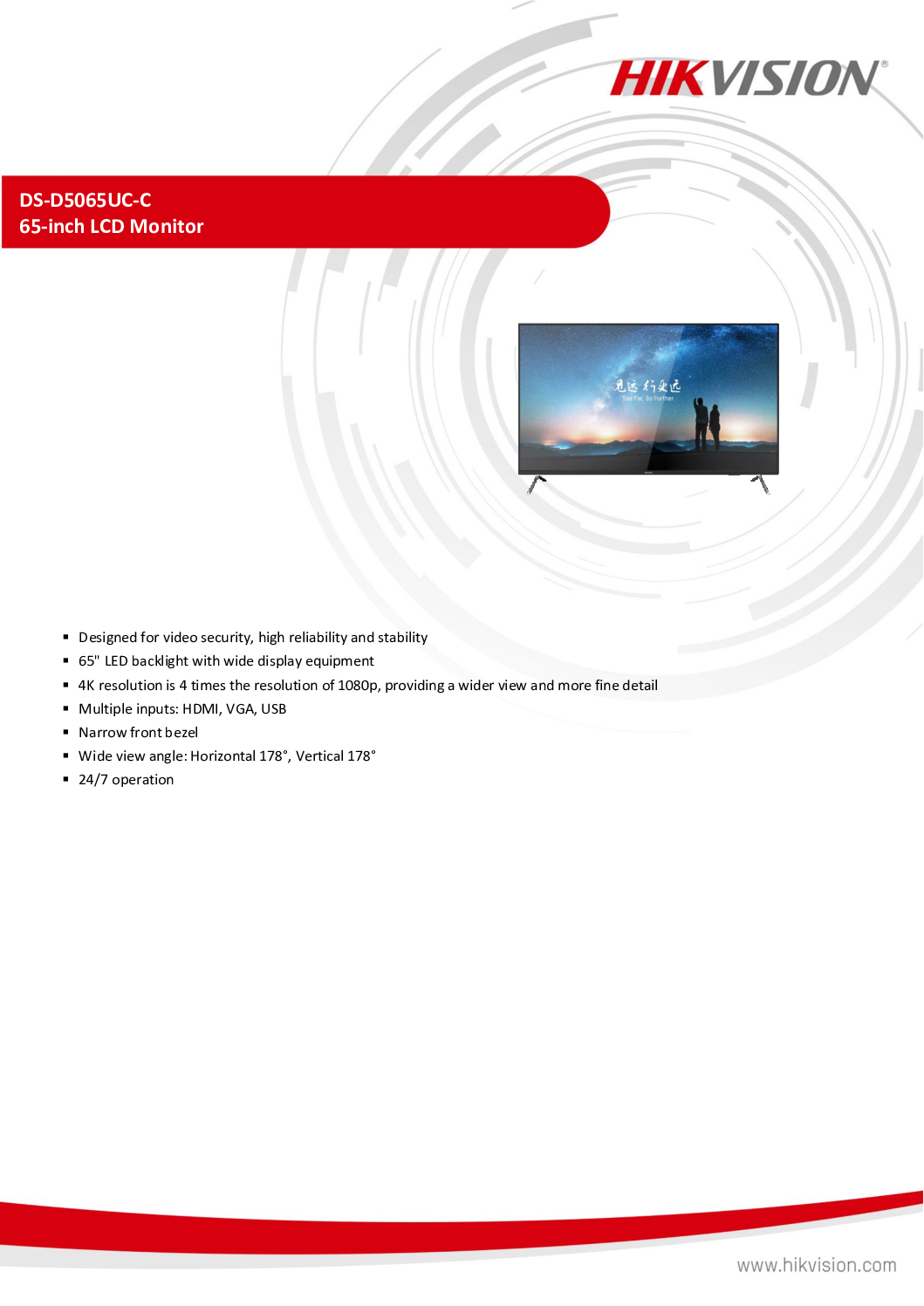

Hikvision’s official datasheet confirms the model is designed for video security and specifies 65-inch, 3840 × 2160 @ 60Hz, 350 cd/m², 178°/178° viewing, 7×24-hour operation, HDMI 2.0 + HDMI 1.4 and dual 7W speakers. (Hikvision)

Hikvision official DS-D5065UC-C datasheet

HIKVISION DS-D5065UC-C 65-inch 4K Monitor 24/7 Operation O-STD Security Command Center CCTV Monitor Repair SGCCTV CHOICECYCLE

The HIKVISION DS-3E0510P-E/M is a compact professional 8-Port Gigabit Unmanaged PoE Switch designed for CCTV security cameras, IP surveillance systems, NVRs, access control, IP intercom and other Power over Ethernet network applications.

Featuring 8 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP fibre optical port, the DS-3E0510P-E/M provides a simple and reliable way to power and connect multiple IP security cameras through standard Ethernet cabling.

With IEEE 802.3af/at PoE, up to 30W per PoE port, a 58W total PoE budget, 20Gbps switching capacity, Gigabit network transmission and 6kV surge protection, this switch is ideal for small and medium CCTV security installations.

Key Specifications

• Brand: HIKVISION
• Model: DS-3E0510P-E/M
• Type: Gigabit Unmanaged PoE Switch
• 8 × Gigabit PoE RJ45 Ports
• 1 × Gigabit RJ45 Uplink Port
• 1 × Gigabit SFP Fibre Optical Port
• Total Network Ports: 10
• PoE Ports: Ports 1–8
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Power Per Port: 30W
• Total PoE Budget: 58W
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K
• Internal Cache: 1.5 Mbits
• Surge Protection: 6kV
• Power Supply: 48V DC, 1.35A
• Fanless Design
• Metal Housing
• Desktop or Wall-Mounted Installation

8-Port Gigabit PoE for CCTV Cameras

The DS-3E0510P-E/M provides 8 Gigabit PoE ports, allowing compatible IP cameras to receive both electrical power and network data through one Ethernet cable.

Instead of installing:

Power Cable + Power Adapter + Network Cable

a PoE CCTV installation can use:

One Cat6 Cable = POWER + DATA

This simplifies installation and makes the CCTV system easier to maintain.

It is suitable for:

• HIKVISION IP Cameras
• AcuSense Cameras
• ColorVu Cameras
• Smart Hybrid Light Cameras
• Dome Cameras
• Bullet Cameras
• AI CCTV Cameras
• Door Access Devices
• IP Intercom
• Compatible Wireless Access Points

Gigabit CCTV Network Performance

All eight PoE camera ports operate at Gigabit Ethernet speed, making the switch suitable for modern high-resolution CCTV systems.

Gigabit connectivity is particularly useful when deploying:

• 4MP Cameras
• 6MP Cameras
• 8MP / 4K Cameras
• AI Cameras
• High-Bitrate Cameras
• Multi-Stream CCTV
• Audio + Video Cameras

The switch provides 20Gbps switching capacity and a 14.88 Mpps forwarding rate, enabling wire-speed forwarding for network traffic.

58W Total PoE Budget

The original DS-3E0510P-E/M provides a total 58W PoE power budget, with individual PoE ports supporting up to 30W.

This means that although the switch provides eight PoE ports, technicians must calculate the combined maximum power requirement of all connected cameras.

For example:

8 cameras × 5W = 40W — Suitable

But:

8 cameras × 10W = 80W — Exceeds the 58W PoE budget

Always calculate the total PoE requirement before selecting a switch, especially when using motorized cameras, IR cameras, PTZ cameras or other higher-power devices.

Gigabit SFP Fibre Optical Port

A major advantage of the DS-3E0510P-E/M is its dedicated Gigabit SFP fibre optical port.

With a compatible SFP transceiver, the switch can be connected to a fibre optic backbone.

A typical installation can be:

8 CCTV Cameras → DS-3E0510P-E/M → SFP Fibre → Server Room → NVR

This is useful for:

• Building-to-Building CCTV
• Warehouses
• Factories
• Remote Guardhouses
• Commercial Buildings
• Industrial Sites
• Long-Distance Network Backbone

Actual fibre distance depends on the selected SFP transceiver and fibre type.

1 × Dedicated Gigabit RJ45 Uplink

In addition to the eight PoE ports, the switch provides a dedicated Gigabit RJ45 uplink.

This can be connected to:

• HIKVISION NVR
• Router
• Core Switch
• Network Switch
• Server
• CCTV Workstation
• Internet Network

This gives installers flexibility to use either copper Ethernet or fibre for the network uplink.

6kV Surge Protection

The DS-3E0510P-E/M provides 6kV surge protection for the PoE ports.

This adds protection against transient electrical surges that can damage network equipment.

For outdoor CCTV systems, proper surge protection, grounding and professional cabling practices should still be implemented according to the installation environment.

Fanless Design for Reliable Operation

The DS-3E0510P-E/M uses a fanless design.

Benefits include:

• Quiet Operation
• Fewer Moving Parts
• Reduced Dust Intake
• Lower Maintenance
• Suitable for Offices
• Suitable for Small Server Cabinets
• Reliable Continuous Operation

Its metal housing also provides better physical protection for professional installations.

Plug-and-Play Unmanaged Switch

The DS-3E0510P-E/M is an unmanaged switch.

This makes installation simple:

Connect Power → Connect CCTV Cameras → Connect NVR/Network → Start Operation

No complicated switch configuration is required for a basic CCTV network.

For installations requiring advanced features such as VLAN configuration, PoE Watchdog, STP/RSTP or remote switch management, consider a Hikvision Smart Managed PoE Switch instead.

Ideal Applications

• Home CCTV
• Office CCTV
• Retail Shops
• Warehouses
• Factories
• Schools
• Clinics
• Restaurants
• Condominiums
• Commercial Buildings
• Car Parks
• Guardhouses
• Server Rooms
• Small Business Networks
• Security System Installations

CCTV PoE Switch Troubleshooting

A CCTV camera going offline does not always mean that the camera itself is faulty.

The problem can originate from:

• PoE Switch
• Power Adapter
• Cat5e / Cat6 Cable
• RJ45 Connector
• Network Configuration
• NVR
• SFP Module
• Fibre Cable
• IP Address Conflict
• PoE Power Overload

A proper troubleshooting process should check:

Camera → Cat6 Cable → RJ45 → PoE Switch → Network Uplink → NVR

Common PoE Switch Problems

SGCCTV can troubleshoot issues including:

• CCTV Camera No Power
• Camera Offline
• PoE Port Failure
• Switch No Power
• Intermittent Video
• NVR Cannot Detect Camera
• Fibre Link Failure
• SFP Module Failure
• Network Packet Loss
• Damaged RJ45 Port
• Faulty Power Adapter
• Insufficient PoE Power
• Network Cable Failure
• CCTV Recording Problems
• Remote Viewing Failure

CCTV Security Camera Repair & Replacement Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides professional services including:

• HIKVISION PoE Switch Supply
• PoE Switch Replacement
• CCTV Camera Installation
• CCTV Troubleshooting
• Network Troubleshooting
• Cat6 Cable Testing
• RJ45 Termination
• Fibre Optic Installation
• SFP Module Installation
• NVR Installation
• CCTV Repair & Replacement
• Server Rack Installation
• Preventive Maintenance
• Technical Support

Why Choose SGCCTV Choicecycle?

SGCCTV provides integrated:

CCTV + PoE SWITCH + NETWORK + FIBRE + SERVER RACK + DOOR ACCESS

solutions.

When a CCTV camera fails, the cause may be the camera, cable, PoE power, network switch, fibre link, NVR or network configuration.

By troubleshooting the complete security infrastructure, the actual fault can be identified before unnecessary equipment is replaced.

Website: https://sgcctv.biz

Email: enquiry@choicecycle.com.sg

WhatsApp: +65 98534404

Frequently Asked Questions

1. What is the HIKVISION DS-3E0510P-E/M?

The DS-3E0510P-E/M is an 8-port Gigabit unmanaged PoE switch designed for CCTV cameras and other compatible PoE network devices.

2. How many PoE ports does it have?

It provides 8 × Gigabit PoE RJ45 ports.

3. How many uplink ports are available?

It has 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP fibre optical port.

4. What is the total PoE power budget?

The original DS-3E0510P-E/M has a total 58W PoE power budget.

5. How much power can each PoE port provide?

Each PoE port can provide up to 30W, subject to the overall 58W PoE budget.

6. Does it support PoE+?

Yes. The switch supports both IEEE 802.3af and IEEE 802.3at PoE standards.

7. Is DS-3E0510P-E/M a managed switch?

No. It is an unmanaged PoE switch, designed for straightforward plug-and-play installation.

8. Can the switch connect to fibre optic cable?

Yes. It provides one Gigabit SFP optical port. A compatible SFP transceiver and fibre cable are required.

9. Can it be used for HIKVISION CCTV cameras?

Yes. It is designed for video surveillance network applications and can power compatible HIKVISION IP cameras, subject to the camera’s PoE standard and total power requirements.

10. Does SGCCTV provide PoE switch and CCTV repair?

Yes. SGCCTV Choicecycle Singapore provides CCTV troubleshooting, PoE switch replacement, Cat6 cabling, fibre optic installation, SFP troubleshooting, NVR repair, camera replacement and preventive maintenance.

#Hikvision #DS3E0510PEM #HikvisionSwitch #PoESwitch #8PortPoE #GigabitPoE #PowerOverEthernet #CCTVSwitch #CCTVPower #IPCamera #CCTVRepair #SecurityCamera #CCTVSingapore #SGCCTV #Choicecycle

Important model revision: Hikvision also has DS-3E0510P-E/M(B). The newer (B) version is still 8 Gigabit PoE + 1 Gigabit RJ45 + 1 Gigabit SFP, but its official datasheet specifies a higher 80W PoE budget. So for quotations and listings, check whether your stock label says DS-3E0510P-E/M or DS-3E0510P-E/M(B) before advertising the PoE wattage. (Hikvision)

Hikvision official DS-3E0510P-E/M datasheet

HIKVISION DS-D5065UC-C 65-inch 4K Monitor 24/7 Operation O-STD Security Command Center CCTV Monitor Repair SGCCTV CHOICECYCLE

Frequently Asked Questions

1. What is the HIKVISION DS-9632NI-M16?

The DS-9632NI-M16 is a 32-channel M-Series enterprise 8K NVR designed for high-performance CCTV recording, storage and management.

2. How many cameras can it support?

It supports up to 32 IP camera inputs.

3. Does the DS-9632NI-M16 support 8K?

Yes. The recorder provides video output at up to 8K resolution, or dual 4K outputs depending on configuration.

4. What is its maximum camera resolution?

The NVR supports high-resolution IP camera streams up to 32MP, subject to its decoding and bandwidth limits.

5. How many hard drives can be installed?

The DS-9632NI-M16 provides 16 SATA HDD interfaces plus 1 eSATA interface for additional storage connectivity.

6. What RAID modes are supported?

It supports RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10, together with N+M Hot Spare functionality.

7. What is the maximum recording bandwidth?

The NVR provides up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, making it suitable for large high-resolution CCTV installations.

8. Can it work with HIKVISION AI cameras?

Yes. It can be used with compatible HIKVISION intelligent cameras, including people-counting, ANPR, fisheye and other AI/deep-learning camera solutions.

9. Is the DS-9632NI-M16 suitable for enterprise CCTV?

Yes. Its combination of 32 channels, 8K output, 16 HDD bays, RAID, high bandwidth and enterprise storage protection makes it particularly suitable for large and mission-critical CCTV installations.

10. Does SGCCTV provide DS-9632NI-M16 installation, RAID configuration and repair?

Yes. SGCCTV provides enterprise NVR installation, RAID configuration, HDD replacement, storage expansion, network configuration, CCTV migration, troubleshooting, repair, preventive maintenance and technical support in Singapore.

#Hikvision #DS9632NIM16 #8KNVR #EnterpriseNVR #RAIDNVR #32ChannelNVR #AcuSense #DeepLearning #AICCTV #EnterpriseCCTV #CCTVStorage #SecurityCamera #CCTVSingapore #SGCCTV #Choicecycle

HIKVISION DS-D5065UC-C 65-inch 4K Monitor 24/7 Operation O-STD Security Command Center CCTV Monitor Repair SGCCTV CHOICECYCLE
